Adjustable Props (Jackey / Span)

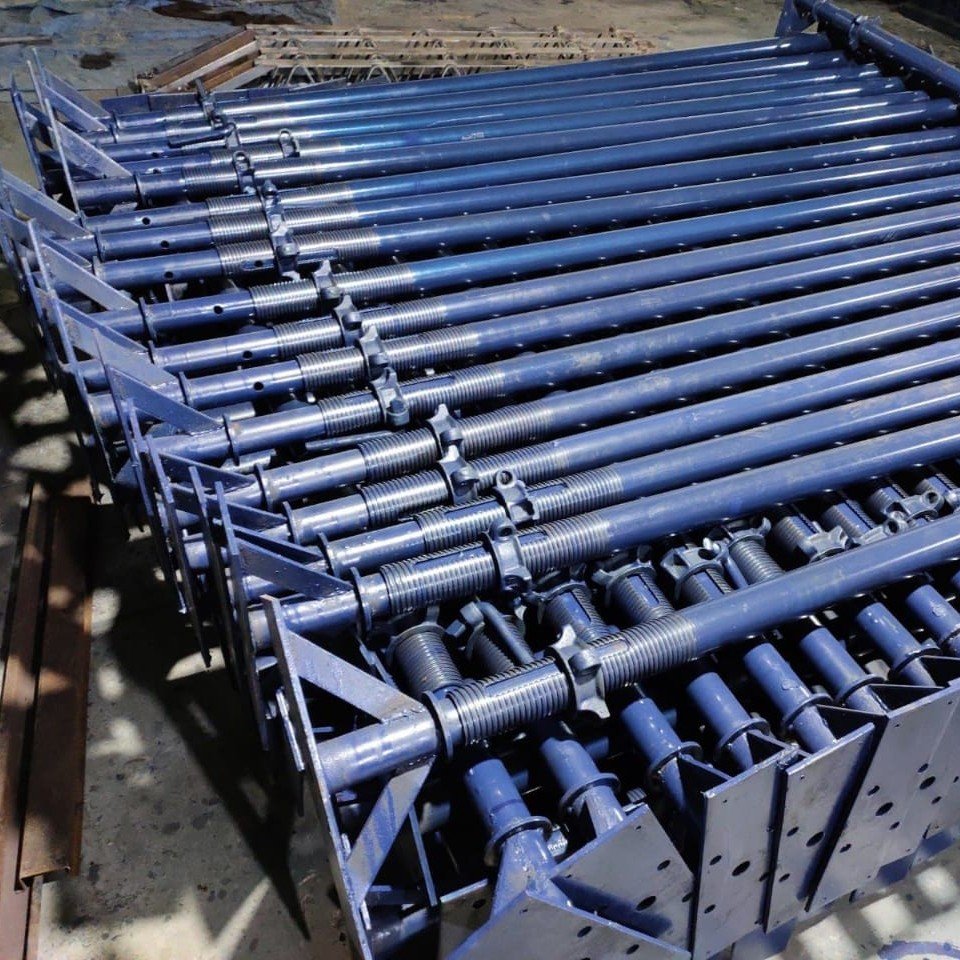

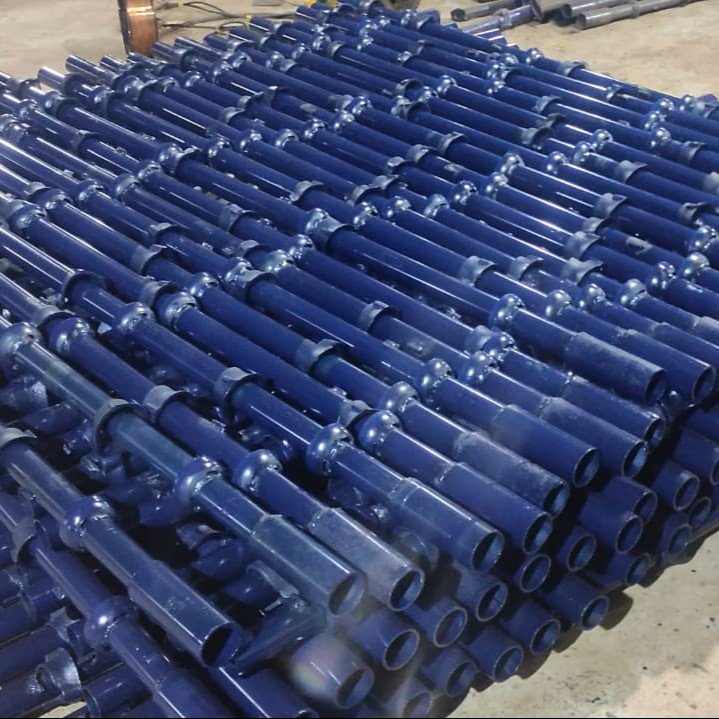

Adjustable steel props are temporary vertical supports used during slab casting and shuttering. Their telescopic design allows height adjustment without requiring additional tools. These props consist of an outer and inner pipe with a threaded collar for fine tuning.

Applications: Used extensively in building construction to support slab formwork, beams, and lintels during the curing period of concrete.

Specifications:
Outer Pipe: 60.3 mm diameter
Inner Pipe: 48.3 mm diameter
Adjustable Height: From 1.0 m to 5.5 m
Base & Head Plate: Flat or U-head; usually 150 mm x 150 mm

Finish Options: Painted (Red Oxide/Grey), Galvanized for corrosion resistance
